Sega a nastro - vertical band saws - scies à ruban - sägemaschinen bandsäge SN400

Motor power HP (KW) 2 (1,5)

Cast iron fly-wheels Ø mm 400

Fly-wheel’s width mm 25

Cutting width mm 390

Max cutting height mm 280

Blade width mm 6 ÷ 25

Blade’s speed m/sec 18

Overall dimensions of the cast iron table mm 500 X 450

Net weight kg 125

EQUIP. – “CE” SAFETY REGULATIONSElectric system according to norms

Self-braking electronic system

Safety protections according to norms

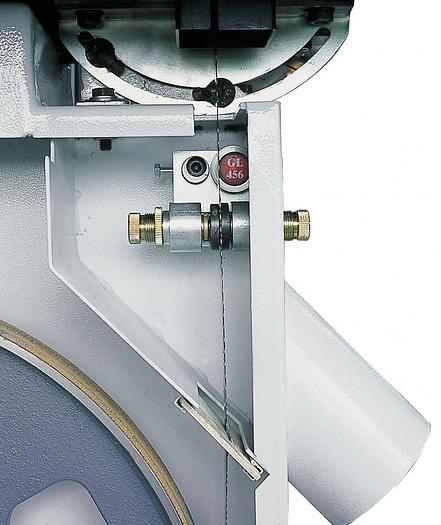

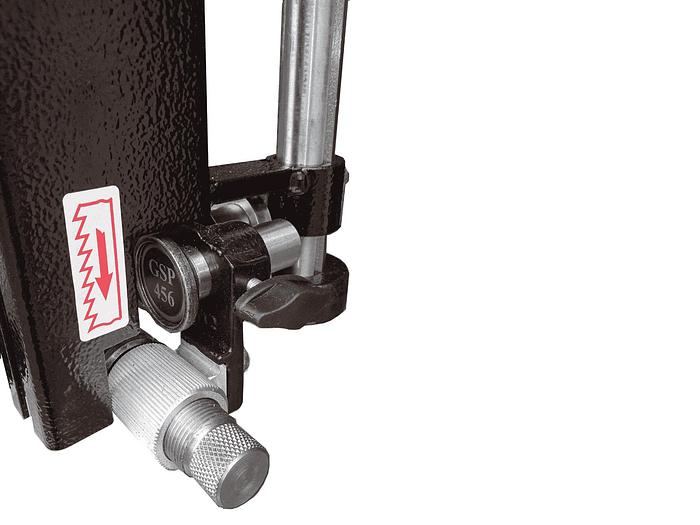

Top saw blade guide with rack movement

Tilting cast iron table 0°÷20°
