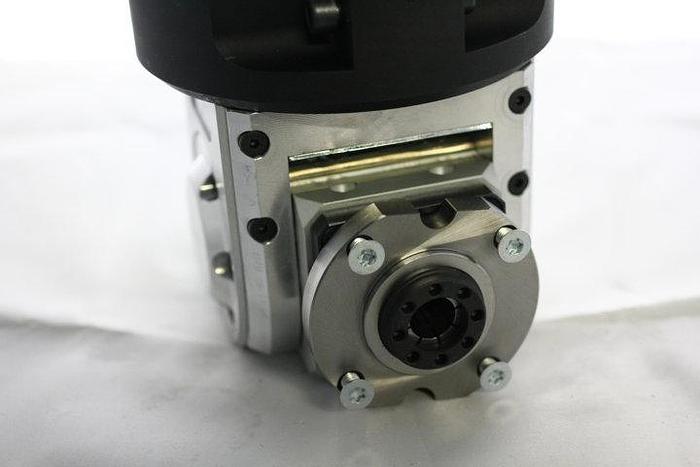

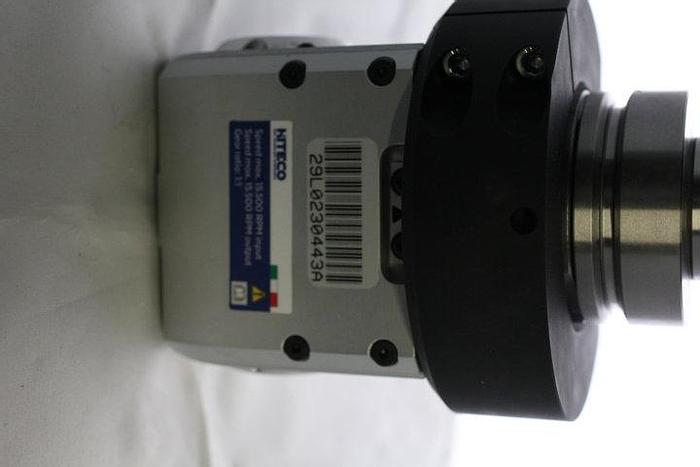

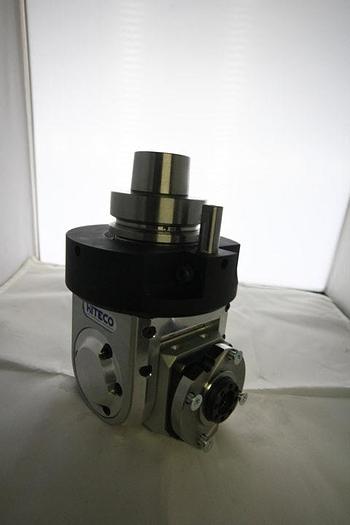

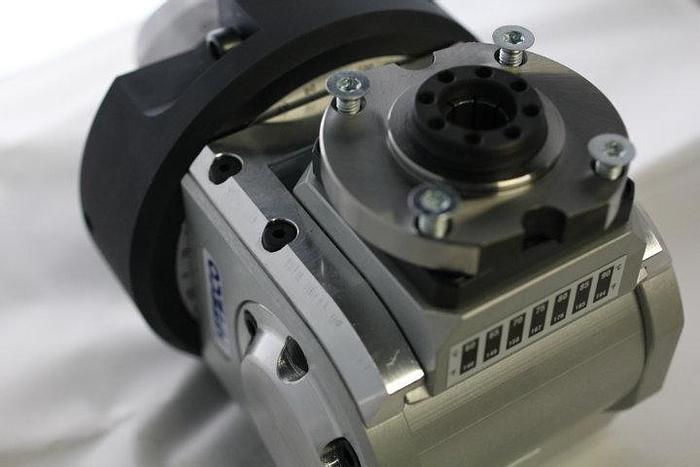

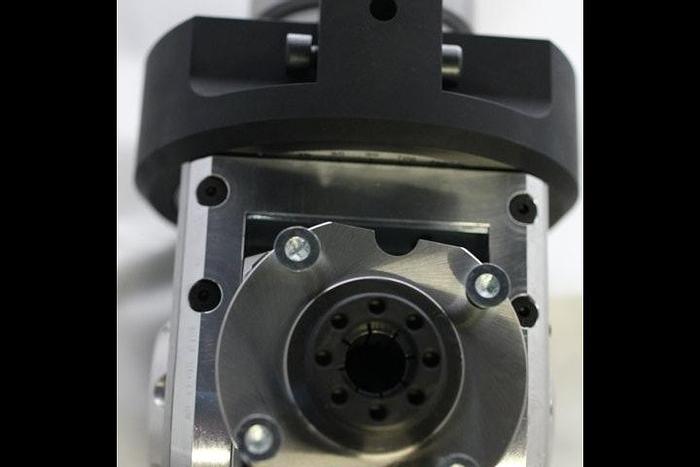

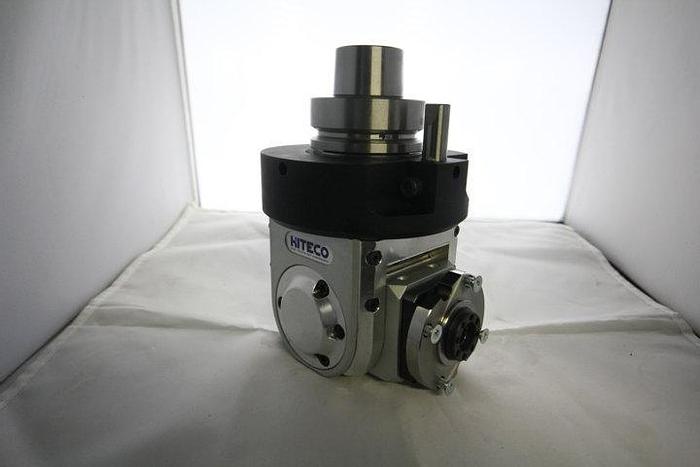

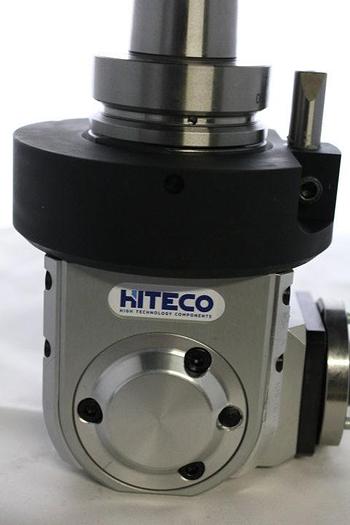

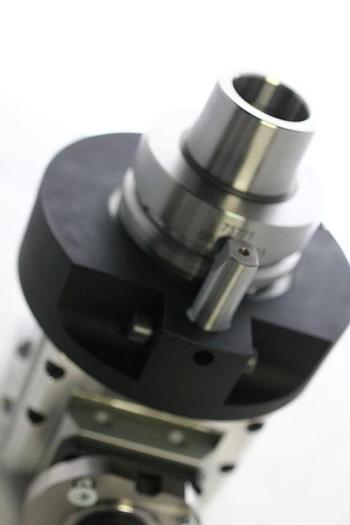

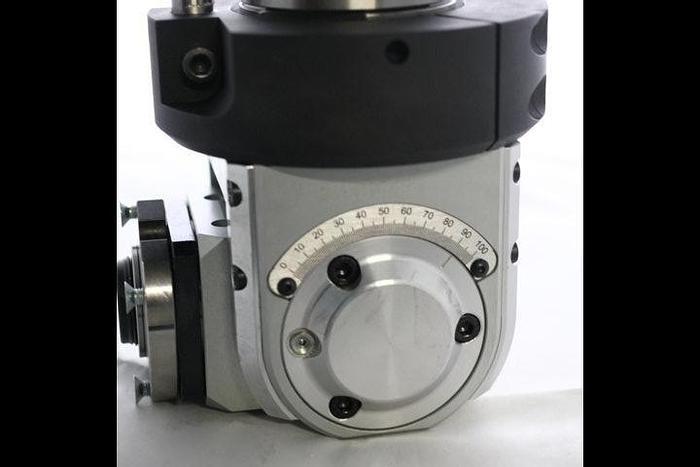

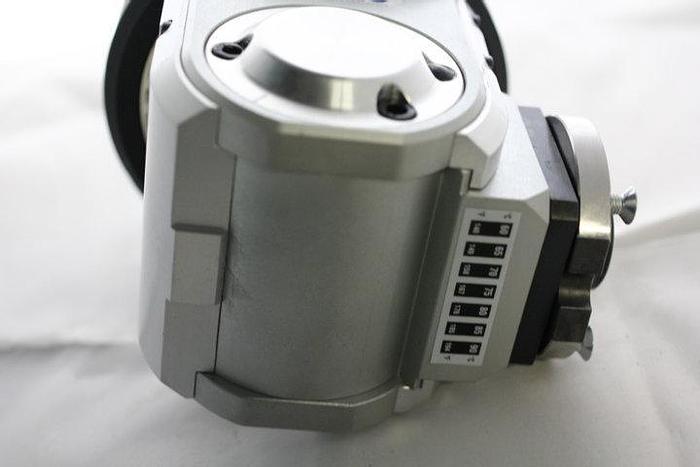

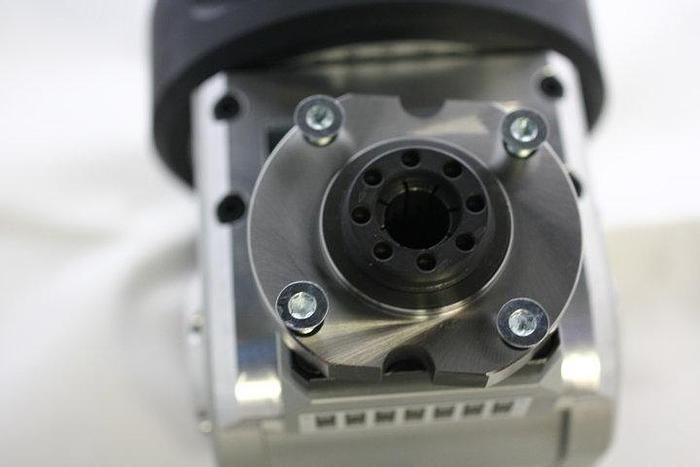

Hiteco scm group aggregato aggregate unit for cnc Biesse Scm Homag Tilt blade ER20B H115

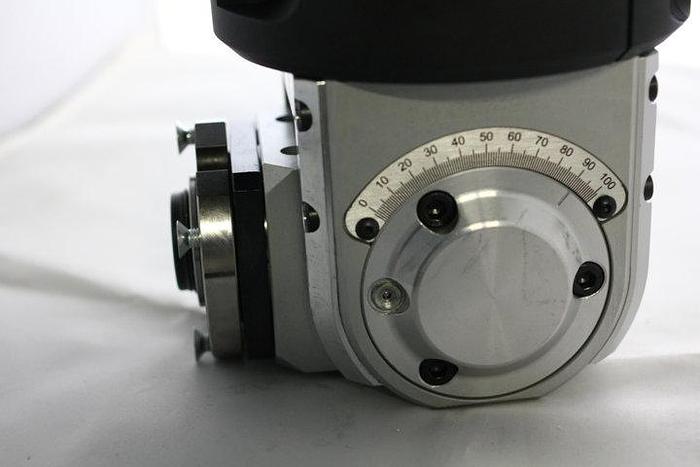

Suitable for milling and drilling operations with tool inclination from 0 ° to 360 ° Ideal for drilling, milling and cutting Grease lubrication Spindle rotation speed up to 15500 rpm Available tool holders: ER20 BLADE Predisposition compatible with the main machine manufacturers Max speed spindle rotation15500 rpm Max speed tool rotation15500 rpm Spindle rotation direction see layout Possibility of spindle rotation inversion Tilt angle 0-100 ° Transmission ratio 1: 1 Internal tool holder ER20 Blade hole diameter 35 mm Weight5 kg Lubrication Grease Max temperature 75 ° C Angular orientation 0 ° / 360 ° continuous
